Running tutor with HTTPS locally

Development
1

Today while working locally some changes for authoring I was on need to test it while being on HTTPS to make sure the behaviour was going to match what was expected and noticed that currently tutor doesn’t have a quick way to run things with HTTPS locally, or at least I didn’t figure out a proper way to do it….

So if anyone knows the details on how “oficially do it” I would be glad to give it a read, if there’s no way, then I would like to know if theres any specific reason on why…

I have it running now and there’s a couple of changes that can be added in a tutor plugin to have this feature but some others that are not currently possible (or at least not to my current knowledge of possible patches)

The steps I went through to have it running:

ROOT_CA="$(mkcert -CAROOT)/rootCA.pem"
docker cp "$ROOT_CA" "tutor_main_local-cms-1:/usr/local/share/ca-certificates/rootCA.crt"
docker exec -u 0 "tutor_main_local-cms-1" /usr/sbin/update-ca-certificates --fresh
  • enable HTTPS and WEB_PROXY in tutor:
tutor config save --set ENABLE_HTTPS=True
tutor config save --set ENABLE_WEB_PROXY=True
  • mount certs folder to caddy by modifying manually the docker file (didn’t find a quick way to patch this)
caddy:
    image: docker.io/caddy:2.7.4
    restart: unless-stopped
    ports:
      - "80:80"

      - "443:443"
      # include support for http/3
      - "443:443/udp"

    environment:
      default_site_port: ""
    volumes:
      - ../apps/caddy/Caddyfile:/etc/caddy/Caddyfile:ro
      - ../../data/caddy:/data
      - ./certs:/root/certs # <----- this is the part that was added
  • Add TLS section to Caddyfile to each of the configured hosts that require https ex:
studio.local.openedx.io{$default_site_port} {
    @favicon_matcher {
        path_regexp ^/favicon.ico$
    }
    rewrite @favicon_matcher /theming/asset/images/favicon.ico


    tls /root/certs/studio.local.openedx.io.pem /root/certs/studio.local.openedx.io-key.pem # <--- This is the part that was added and may be possible thorugh a plugin but I went manually here for testing purposes
    import proxy "cms:8000"



    handle_path /* {
        request_body {
            max_size 250MB
        }
    }
}
  • restart caddy so it starts using the certs tutor local restart caddy
  • make sure you have the proper redirections on django oauth toolkit for cms so the login for studio works properly, for it to work properly cms-sso needs to have:
http://studio.local.openedx.io/complete/edx-oauth2/
https://studio.local.openedx.io/complete/edx-oauth2/

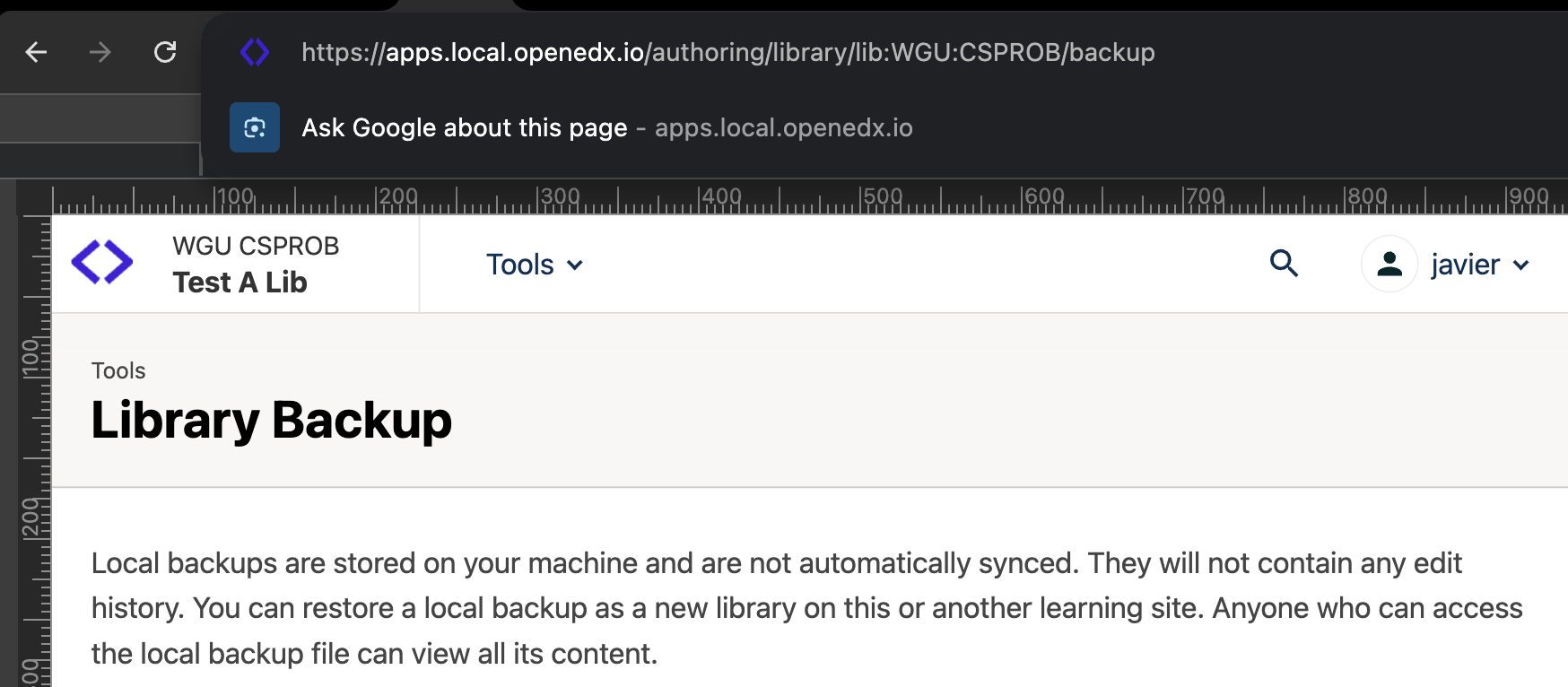

and if you survived the steps you endup with https and all the systems working properly:

image1748×766 79.8 KB

1 Like
2

Hi @Javier_Ontiveros
Overall your process flow seems to mirror what I’ve typically done in this situation.

With the method I’ve used, I have a plugin that uses the caddyfile-mfe-proxy patch for the MFE’s and caddyfile-lms + caddyfile-cms patches to apply the TLS cert to the respective caddyfile blocks.

~/.local/share/tutor-plugins/caddyfile_tls_patch.py :
(activate the plugin with tutor plugins enable caddyfile_tls_patch)

from tutor import hooks

hooks.Filters.ENV_PATCHES.add_item(
    (
        "caddyfile-cms",
        """tls /data/certs/fullchain.pem /data/certs/privkey.pem"""
    )
)
hooks.Filters.ENV_PATCHES.add_item(
    (
        "caddyfile-lms",
        """tls /data/certs/fullchain.pem /data/certs/privkey.pem"""
    )
)
hooks.Filters.ENV_PATCHES.add_item(
    (
        "caddyfile-mfe-proxy",
        """tls /data/certs/fullchain.pem /data/certs/privkey.pem"""
    )
)

If the ENABLE_HTTPS and ENABLE_WEB_PROXY are set to true then the path ~/.local/share/tutor/data/caddy will be mounted automatically as per the config in docker-compose.prod.yml which you can leverage to mount your certs, in my case I just created a certs folder at ~/.local/share/tutor/data/caddy/certs into which I placed my keys. This way we don’t have to add new dedicated mounts as you’ve done, although that’s still a perfectly viable path to take as well.

After adding in your certs and activating the plugin to patch the caddyfile, then restart Caddy as you did before: tutor local restart caddy and you should be good to go :slight_smile:

With this methodology, the changes made to your caddyfile will survive a rebuild, unlike manually editing config files which will not survive a rebuild, this should make your experience a bit more consistent…

edit: just as a point of clarification though, I’ve never used mkcert that you’re using, I was at the time using certbot to create certs issued by an actual authority LetsEncrypt which is the same backend that Tutor ordinarily uses in a production environment.

3

Curious if @tutor-maintainers would like to chime in here

4

I normally use mkcert because it handles the installation of the root cert in the proper places for it to work on chromium and firefox based browsers without hassle, at some point in different projects I did tried with with certbot but I had issues when I wasn’t using localhost and had either custom hosts or used custom domains in whichever way so I just keep using it to avoid the pain
